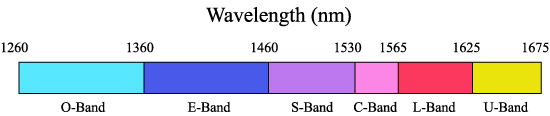

The Super Wide Band Light Source provides high spectral density and stable broadband light covering E+S+C+L+U-band or O+E -band. It outputs more than -28 dBm/nm and the power drift over 8 hours is less than ±0.02 dB at room temperature. This super wideband source is excellent for Optical Coherence Tomography (OCT), fiber optic sensing application and components characterization.
| Features |
| Super Wide Band (1260 nm to 1460 nm or 1420 nm to 1640 nm) |
| High Spectral Density (> -20 dBm/nm over 1440 nm to 1620 nm) |
| Excellent Power Stability (< ±0.02 dB) |
| Applications |
| Optical Coherence Tomography (OCT) |
| Fiber Optic Sensing Application |
| Fiber Optic Components Characterization |
 |
| Specifications |
| O+E-Band Light Source (covering 1260~1460nm) |
| Parameter | Performance | ||
| Dual Central Wavelength | 1300+/-20 nm and 1400+/-20 nm |  |
|
| Output Power | > +7 dBm | ||
| Spectral Density | > -28 dBm/nm (1260 nm to 1460 nm) | ||
| Peak Spectral Density | -7 dBm/nm | ||
| Power Stability | < ± 0.015 dB (over 8 hours) | ||
| Spectral Density Stability | < ± 0.01 dB (over 8 hours) | ||
| Ripple | < 0.3 dB/nm | ||
| Interface | FC/APC, others are available on request | ||
| Fiber | SMF | ||
| Operating Temperature | 0 ~40 ºC | ||
| Storage Temperature | -20 ~60 ºC | ||
| Power Supply | 110/ 230 V AC, 50/60 Hz | ||
| Dimension | 275 x 250 x 100 mm3 | ||
| E+S+C+L+U-Band Light Source (covering 1420~1640nm) |
| Parameter | Performance | |
| Central Wavelength | 1540 nm | |
| Output Power | > 8 mW (10mW, typical ) | |
| Spectral Density | > -20 dBm/nm (1440 nm to 1620 nm) | |
|
> -25 dBm/nm (1420 nm to 1640 nm) |
||
| Peak Spectral Density | -7 dBm/nm | |
| Power Stability | < ± 0.02 dB (over 8 hours) | |
| Ripple | < 0.1 dB | |
| Interface | FC/APC, others are available on request | |
| Fiber | SMF | |
| Operating Temperature | 0 ~40 ºC | |
| Storage Temperature | -20 ~60 ºC | |
| Power Supply | 110/ 230 V AC, 50/60 Hz | |
| Dimension | 257.5 x 324 x 103 mm3 |
| For customized specification, please contact us at contact@optolinkcorp.com. |
|
| Ordering Codes |
OLSWB - [Bandwidth] - [Connector Type] |
| Bandwidth | Code | Connector Type | Code |
| O+E-Band (covering 1260~1460nm) | OE | FC/APC | FA |
| E+S+C+L+U-Band (covering 1420~1640nm) | ESCLU | Others | XX |
* Opto-Link Corporation Ltd reserves the right to make changes to the products described herein without notice. |
|
